Features

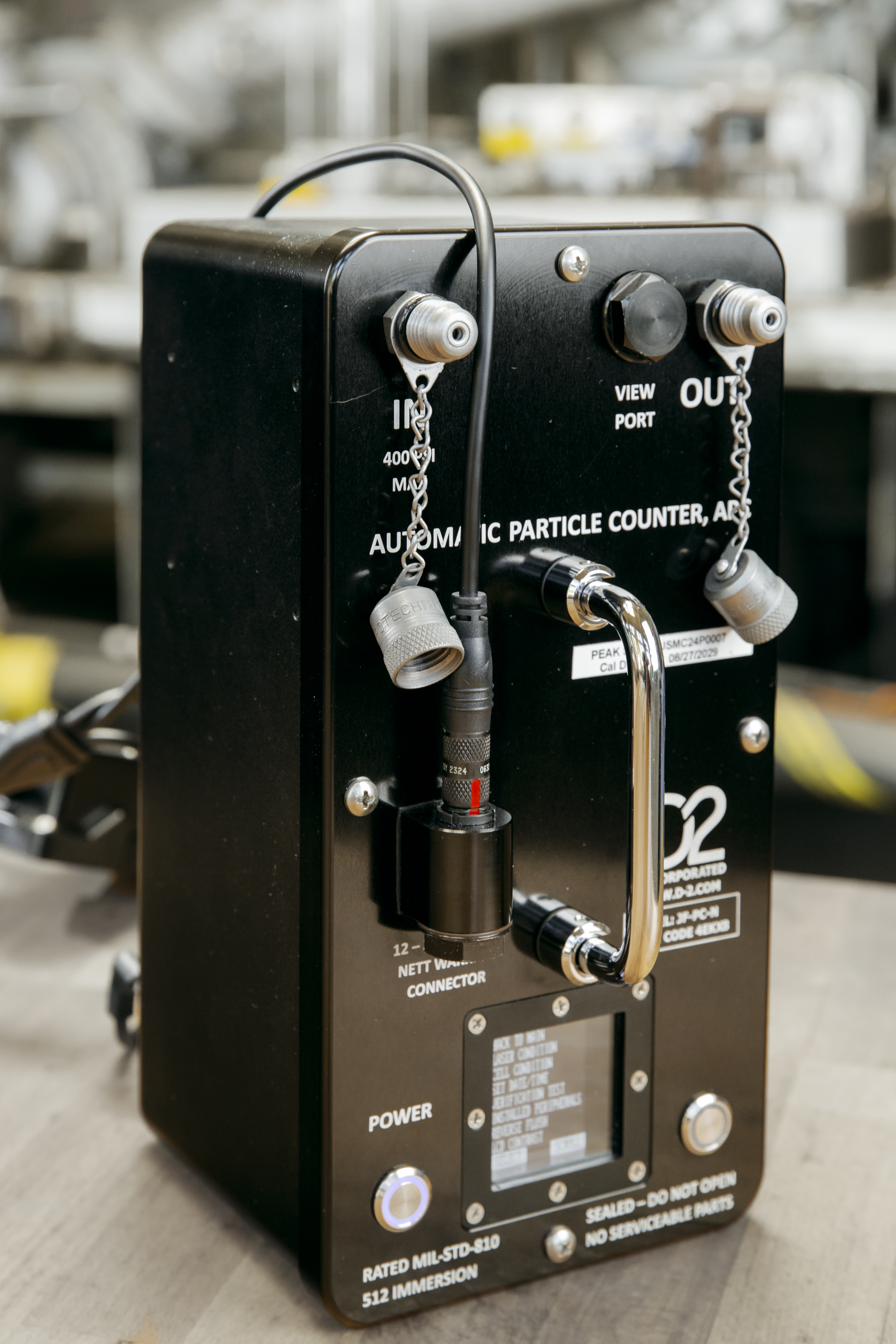

- Field Portable and Laboratory Use Light Obscuration Particle Counter
- ISO 11171:2020 Calibrated
- ASTM D7619 Equivalent
- ISO 4406 Reporting
- Optional Conductivity & Density
- High Resolution Color Display
- Simple Two Button Operation
- Military Hardened and Ruggedized for Field Operation (Drop Tested)
- High Speed Flush
- Back Flush Capable
- 1620 Hydraulic Sample Couplings
- 110/240 VDC or Battery Powered
- Sample/Location Identifier Input
- Waterproof IP67
Technical data
- Reporting: >4μ(c), >6μ(c), >14μ(c), >21μ(c), >25μ(c) & >30μ©
- Results format: Cumulative, Particles/ml, ISO 4406 Cleanliness Codes
- Memory: 400 Test points, All Test Data (Fully Resettable)
- Programmability: User Programmable: RS232 Serial Commands, Optional Y-Cable @ 57600 BAUD
- External Data Output: Memory Output to PC or SERIAL Printer Optional Y-Cable @ 19200 BAUD
- USB: No
- Alarm Limits: User Programmable for each defined fuel, max 5 fuels. (Pass Fail indicated by: Green/Red Display Background and Right Button LED)
Standard design
- Construction: Aluminum Case – Powder Coated
- Environmental: IP67, MIL-STD-810 Method 512-Immersion Proce dure 1 (1 meter, 5% salt, 30 minutes), -30°C to 50°C Sample & Operating Temperature
- Test Duration: 2.5 Mins
- Test Pressure: (Max) 27.5 Bar (400psi)
- Viscosity: (Max) 64mm2/S
- Flow Rate: 0ml/min Test – 60ml/min Flush
- Sample Delivery: Integral Syringe Pump And Change Over Valve
