Filter Elements

Coalescer Elements

FAUDI Aviation provides coalescer elements that are suitable for commercial or military specifications and according to the application or customer request.

Coalescer elements are used in the first stage in a filter/water separator when fuel enters the pressure vessel.

Civil Aviation

Military Aviation

General Aviation

P-Type

EI 1581 7th Edition, Category C
Flow direction: In-to-out
Nominal filtration: According to EI 1581 7th Edition
Element selection: Flat sealed or Screw/threaded base

P2-Type

EI 1581 7th Edition, Category C
Flow direction: In-to-out
Nominal filtration: According to EI 1581 7th Edition
Element selection: Screw/threaded base

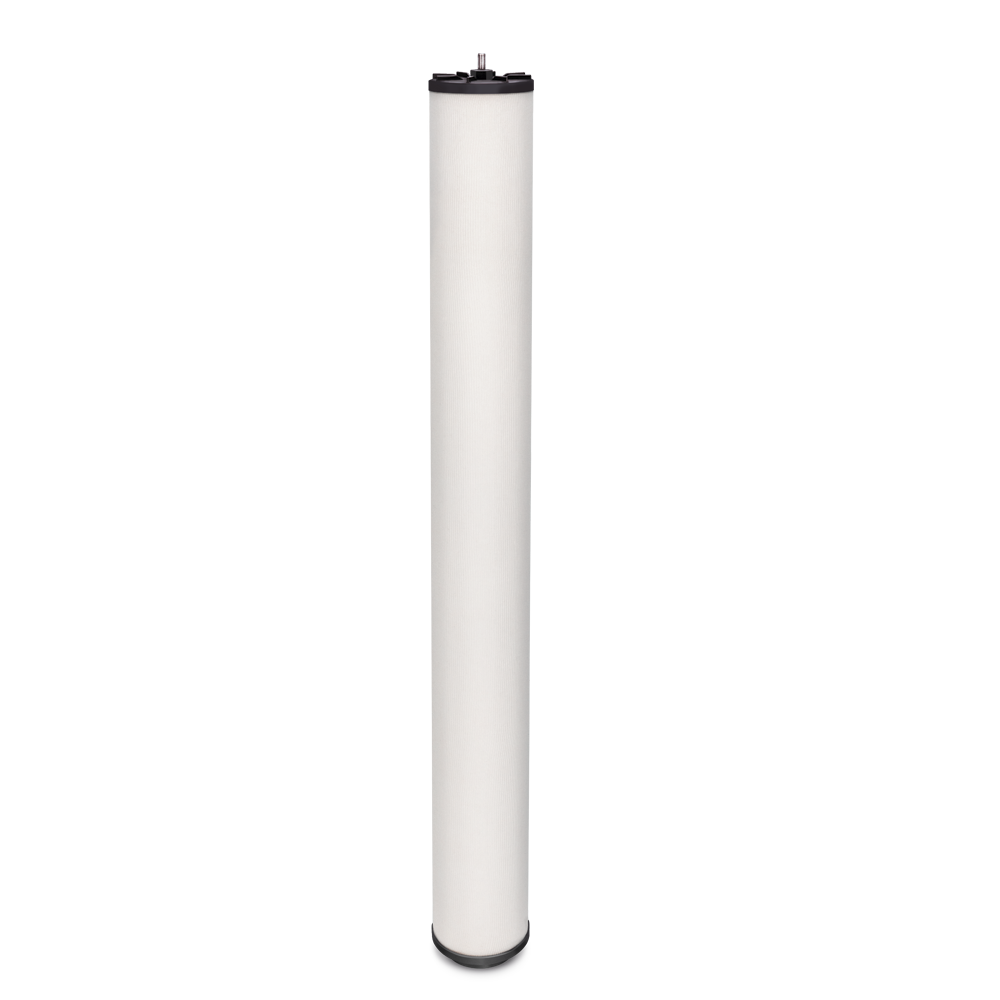

T-Type

EI 1581 7th Edition, Category C, Type S-LW
Flow direction: In-to-out
Nominal filtration: According to EI 1581 7th Edition
Element selection: Flat sealed or Screw/threaded base

MIL-Type

EI 1581 7th Edition, Category M
Flow direction: In-to-out
Nominal filtration: According to EI 1581 7th Edition
Element selection: Flat sealed or Screw/threaded base

MIL2-Type

EI 1581 7th Edition, Category M
Flow direction: In-to-out
Nominal filtration: According to EI 1581 7th Edition
Element selection: Screw/threaded base

Y-Type

EI 1581 7th Edition, Category M
Flow direction: In-to-out
Nominal filtration: According to EI 1581 7th Edition
Element selection: Flat sealed or Screw/threaded base

K-Type

EI 1581 3rd Edition, Group II, Class A, B & C and MIL-F-8901E
Flow direction: In-to-out
Nominal filtration: According to EI 1581 7th Edition
Element selection: Flat sealed or Screw/threaded base

D-Type

TL 4330-0001 (Part 1 & 2) and STS-M 126
Flow direction: In-to-out
Nominal filtration: According to Military Specifications
Element selection: Flat sealed

CS-Type

EI 1581 7th Edition, Category C
Flow direction: Out-to-in
Nominal filtration: According to EI 1581 7th Edition
Element selection: O-Ring

Separator Elements

Separator elements are used as the second stage of a high-performance separation in filter/water separators. After emergence from the coalescer, aviation fuels pass through the pores of the separator element while water droplets are repelled by the hydrophobic separator surface. Water droplets settle into the filter/water separator sump to be drained off.

Civil Aviation

Military Aviation

General Aviation

60-Type

EI 1581 7th Edition, Category C
Flow direction: Out-to-in
Separator screen: Teflon® coated stainless steel mesh or synthetic fabric

60-MIL-Type

EI 1581 7th Edition, Category M
Flow direction: Out-to-in
Separator screen: Teflon® coated stainless steel mesh

FW6-/ FW6-T Series

EI 1581 7th Edition, Category C
Flow direction: Out-to-in
Separator screen: Teflon® coated stainless steel mesh or synthetic fabric

FWE-/ FWE-T Series

EI 1581 7th Edition, Category M
Flow direction: Out-to-in
Separator screen: Teflon® coated stainless steel mesh

CA MA

Microfilters

Microfilters are used as pre-filters for the efficient and continuous removal of solids such as rust, sand and other particulates from aviation fuels. FAUDI Aviation microfilters are used in refineries, terminals and airport depots, primarily as prefilters to lengthen the service life of downstream coalescer elements in filter/water separators. FAUDI Aviation microfilters are highly efficient and thus cost effective due to their large filter surfaces area.
