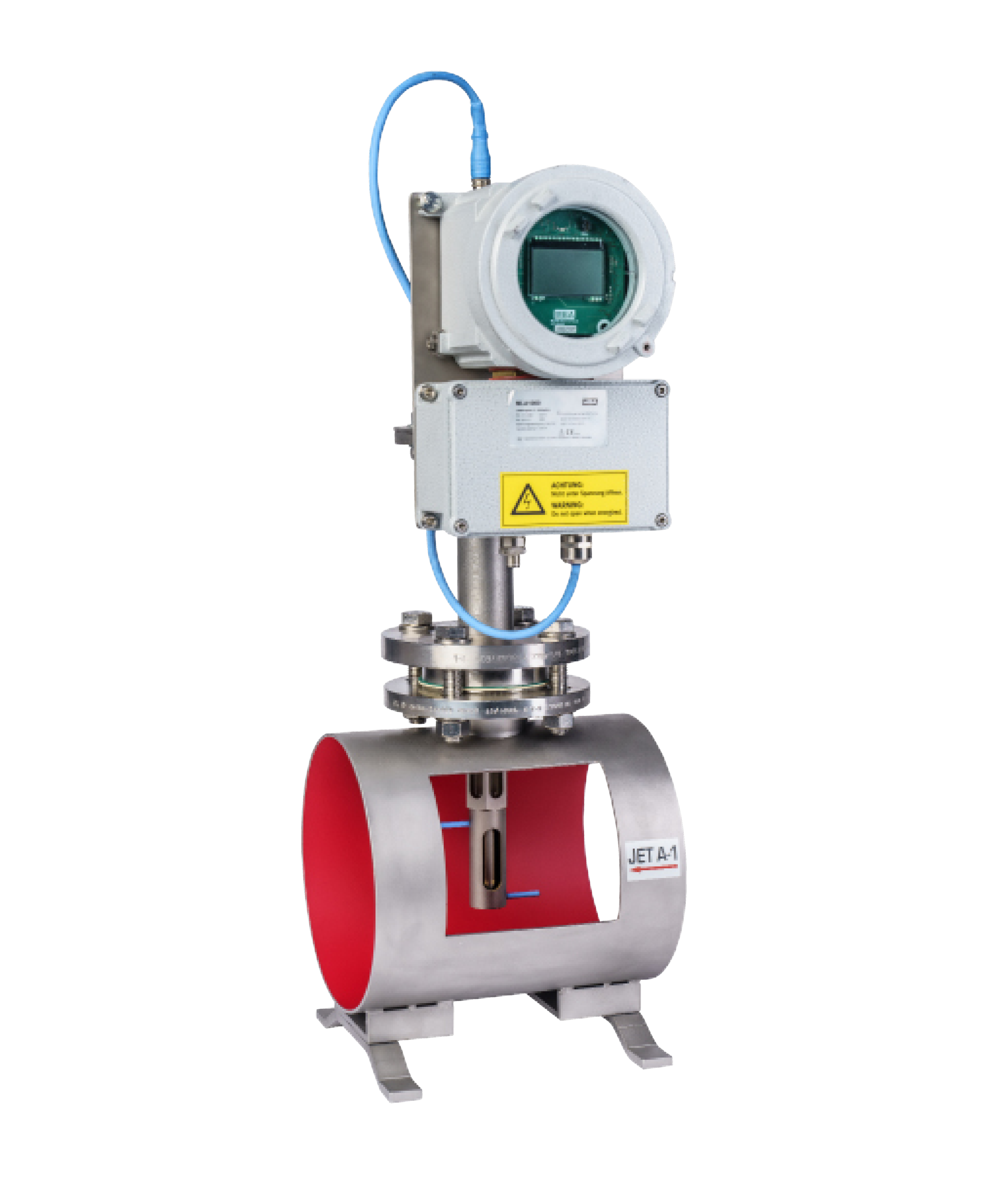

The MLA 1000 measures the electrical conductivity and temperature of light mineral oils such as kerosene, for example. Measurement of the electrical conductivity is a prerequisite for the high safety requirements. Only through accurate knowledge of the electrical conductivity can decisions be made regarding whether the medium can be pumped safety. If the electrical conductivity is too low, then this will result in electrostatic charging followed by discharging, which often becomes a dangerous ignition source because of sparking. In addition to the electrical conductivity, the MLA 1000 also measures the temperature.
Measurements are taken in the pipeline continuously and sent to the PLC control unit in the control room. With the determined average values, the additives can be controlled optimally in order to obtain the stipulated conductivity value.
Technical data
Measurement values
Electrical conductivity: 5 … 2.000 pS/m / 5 ... 10.000 pS/m / 5 ... 15.000 pS/m
Temperature:-20°C - 60°C
Measurement accuracy/tolerances
Electrical conductivity: 5 … 100 pS/m ±5 pS/m above 100 pS/m ±2 % of the measured value
Temperature: ±0.5 °C of the measured value
Certifications for use in potentially explosive areas
Display unit MLA1000-A: gas exzone 1 II 2(1)G Ex de [ia Ga] IIB T4 Gb
Measuring probe MLA1000-S: gas exzone 0 II 1G Ex ia IIB T4 Ga
Measured value outputs
Display on the unit: electrical conductivity, temperature and unit status
Signal outputs: electrical conductivity: 4 ... 20 mA / Temperature: 4 ... 20 mA
24 mA: Measured value exceeded / 0 mA: fault
Operating voltage
Voltage input: 24 V DC (±10%) / Capacity: 5 W
Product properties
Probe: Nickle-plated surface
Process connection: loose flange connection (min. DN50 / 2”)
Probe tube material: Stainless steel
Cable length display/probe: max. 24 m
Housing protection of display unit: IP65
Operating requirements
Operating pressure: max. 16 bar
Flow rate: 0,5 ... 7 m/s
Viscosity: less than 2 m Pa·s
Ambient temperature: -20°C - 60 °C
